Acrel Smart Circuit Breaker ASCB1-63-C16 Series Optional Loops

منتوج وصف

ASCB1 series intelligent micro circuit breakers (hereinafter referred to as intelligent micro circuit breakers) are applied to low-voltage terminal distribution networks in industrial, commercial, civil buildings and infrastructure fields in residential buildings and similar places.The intelligent micro circuit breaker is used with the intelligent gateway to conduct real-time monitoring of the key electrical parameters of the power line, such as voltage, current, power, temperature, leakage, energy consumption, etc., and has remote control, abnormal warning, accident trip warning alarm, electric energy metering statistics, fault positioningandotherfunctions. Thisseriesof productscanbe selectedfromunipole,2pole, 3pole, 4pole.

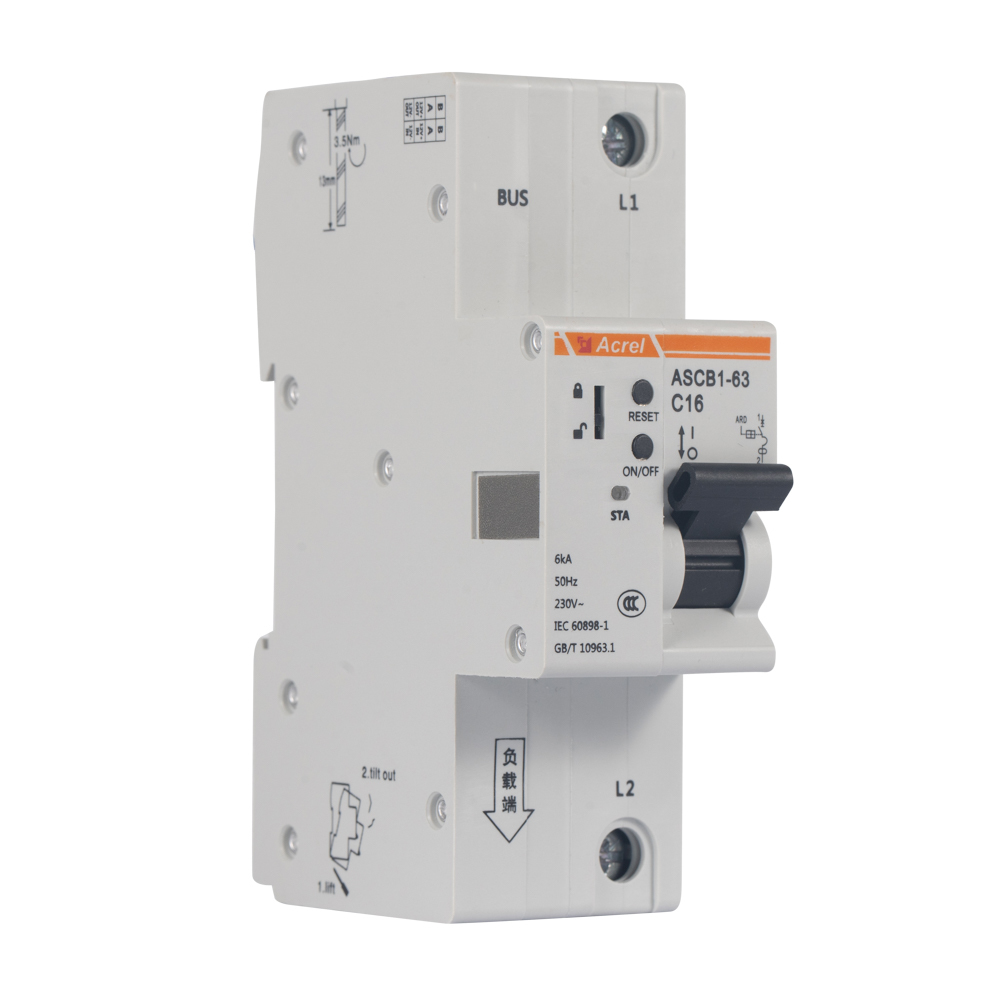

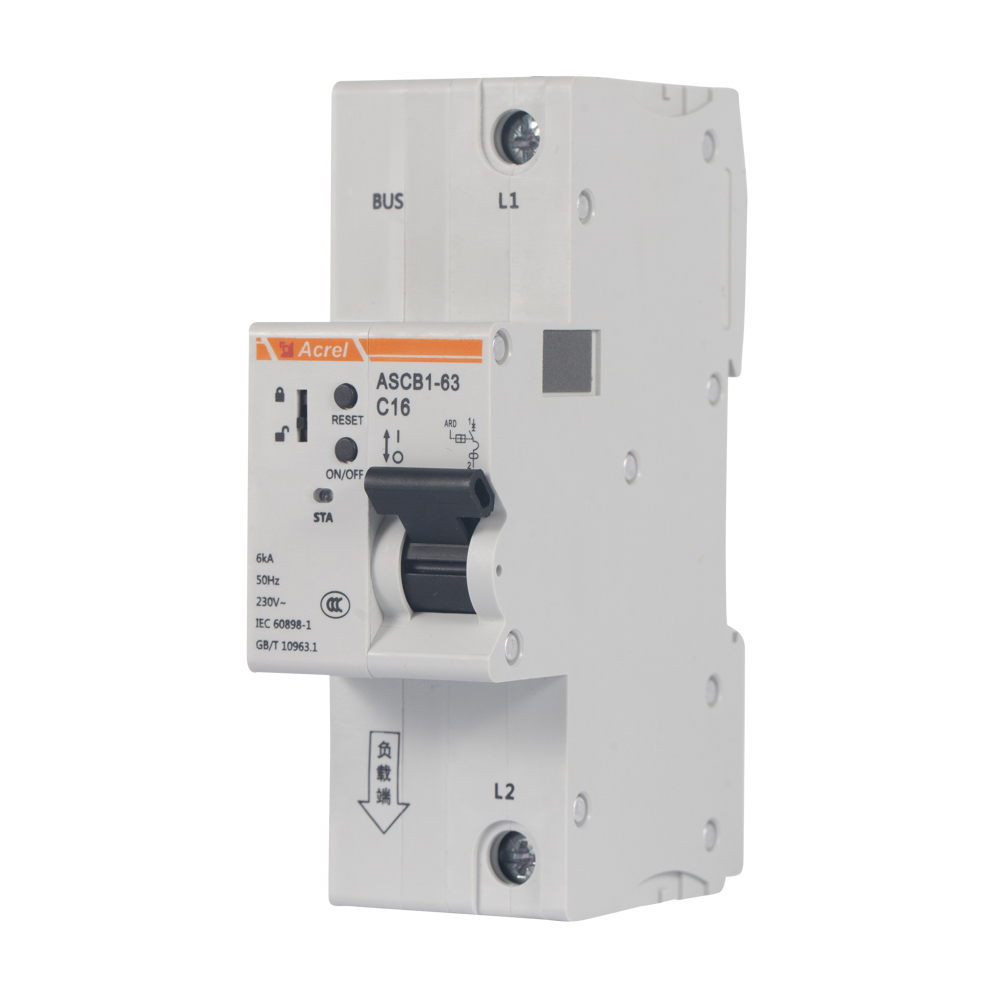

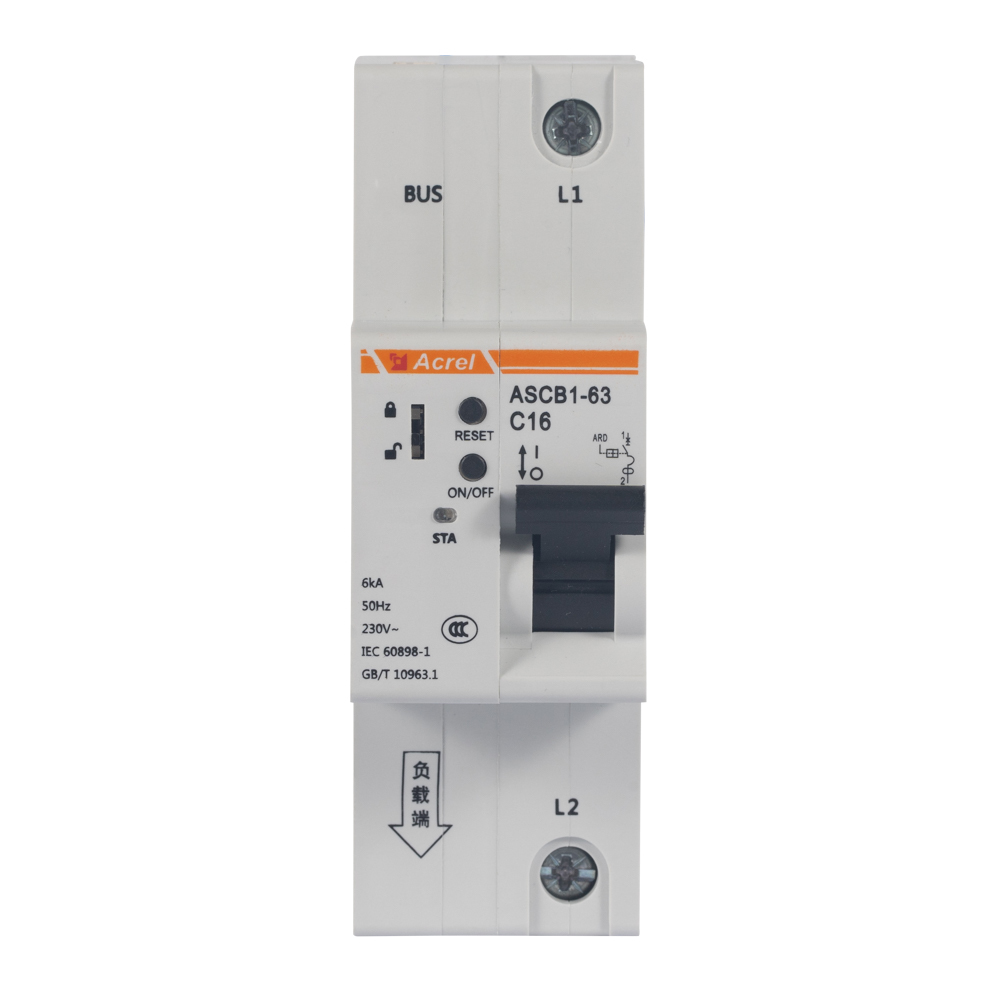

Appearance:

Parameter:

Function:

Wiring:

Typical Connection:

Q: Can the circuit breaker data be collected through RS485 communication?

A: The circuit breaker has its own RS485 communication interface, and it does not need to be equipped with an ASCB1-M gateway to access the customer system, but the customer needs to provide the circuit breaker with DC12V 12A auxiliary power supply

Q: How many circuit breakers can a gateway carry?

A: 16PCS

Q: How Gateways and Circuit Breakers are Networked?

A: The gateway and the circuit breaker are connected by a 4pin cable, a set of DC12V auxiliary power supply, and a set of RS485 communication lines.
The connection between the circuit breaker and the circuit breaker is the same.
One-key addressing operation through the gateway

Q: Does the circuit breaker need to be equipped with additional accessories?

A: 1. Internally integrate various sensor modules, including: current sensor, leakage transformer, temperature sensor, etc.;
2. The circuit breaker integrates the release function, which can realize remote opening and closing operations;
3. Configure the circuit breaker network cable
